Overview

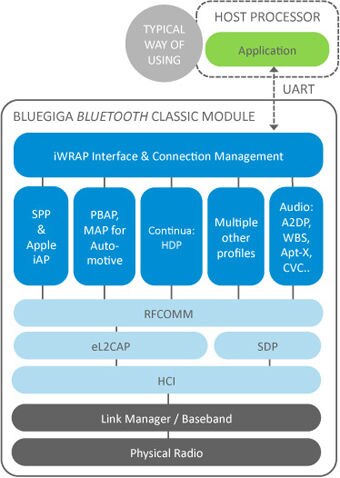

The iWRAP is an embedded Bluetooth stack for Bluegiga Legacy Bluetooth classic modules. It exposes a powerful yet easy-to-use command interface to manage Bluetooth operations. It hides the complexity of the Bluetooth protocol stack and profiles from the end-user and can be used for almost anything; from simple data or audio applications to more complex use cases where interaction with several Bluetooth-enabled devices is needed - or even multi-profile environments for simultaneous audio and data connections.
Bluegiga iWRAP Software Benefits and Specifications
Supported Bluetooth Profiles
A simple ASCII-based command and response API
Easy to use and learn
Fast application development
Low resource requirements for the host
A wide range of Bluetooth profiles
Enable complex use cases possible
Customizable by Bluegiga Technologies
New features and profiles can be added
Offers product differentiation at low risk
No Bluetooth development skills or tools needed
On the field upgradeable
Bluetooth qualified
Proven interoperability
Bluetooth Stack Contains
13 integrated Bluetooth profiles
Apple iAP1 and iAP2 over Bluetooth (MFI)
Two Bluegiga proprietary profiles
Bluetooth 3.0 Compliance
Bluetooth qualified
Secure simple pairing support
Seven simultaneous connections
600 kbps data rate
Supported Bluetooth Profiles
Serial Port Profile
Apple iAP1 and iAP2
Human Interface Device
Advanced Audio Distribution Profile
A/V Remote Control Profile v.1.5
Hands-Free Profile v.1.6
Headset Profile v.1.2
Phone Book Access Profile
Message Access Profile
Device Identification Profile
Bluetooth Health Device Profile
Dial-up Networking Profile
Object Push Profile
File Transfer Profile
Audio Features
SBC, aptX® and AAC codecs
Wide Band Speech
CVC echo cancellation
External codec configuration over I2C
Proprietary Profiles
Bluegiga IO Profile
Bluegiga OTA Profile
Downloads
Download and Install iWRAP Bluetooth Classic Software
The 6th generation iWRAP™ Bluetooth stack targets Bluegiga’s Bluetooth classic modules. It features both Apple iAP1 and iAP2 profiles supporting all Apple iOS devices on the market. iWRAP6 also adds the latest versions of Bluetooth audio profiles such as AVRCP v.1.5 with media browsing capabilities, MAP profile for SMS notifications and message download and new aptX® and AAC audio codecs for improved audio experience.
