Automotive and Industrial Microcontroller - C8051F58xx

C8051F58x Automotive & Industrial MCUs

The C8051F58x automotive and industrial microcontroller (MCU) devices are available in small form factor packages; 32-pin (5 mm x 5 mm), 40-pin (6 mm x 6 mm) and 48-pin (7 mm x 7 mm), making them ideal for applications that need to pack a significant amount of performance (50 MIPS) and integration (12-bit ADC) into a constrained space. Pin-for-pin compatibility exists between the C8051F59x series and the C8051F55x/56x/57x series, the C8051F50x/1x series and the C8051F54x series.

With on-chip Voltage Regulator, Power-On Reset, VDD monitor, Watchdog Timer and a clock oscillator, the Automotive MCUs, including the C8051F58x devices, are truly stand-alone system-on-a-chip solutions. The Flash memory can be reprogrammed even in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware. User software has complete control of all peripherals, and may individually shut down any or all peripherals for power savings.

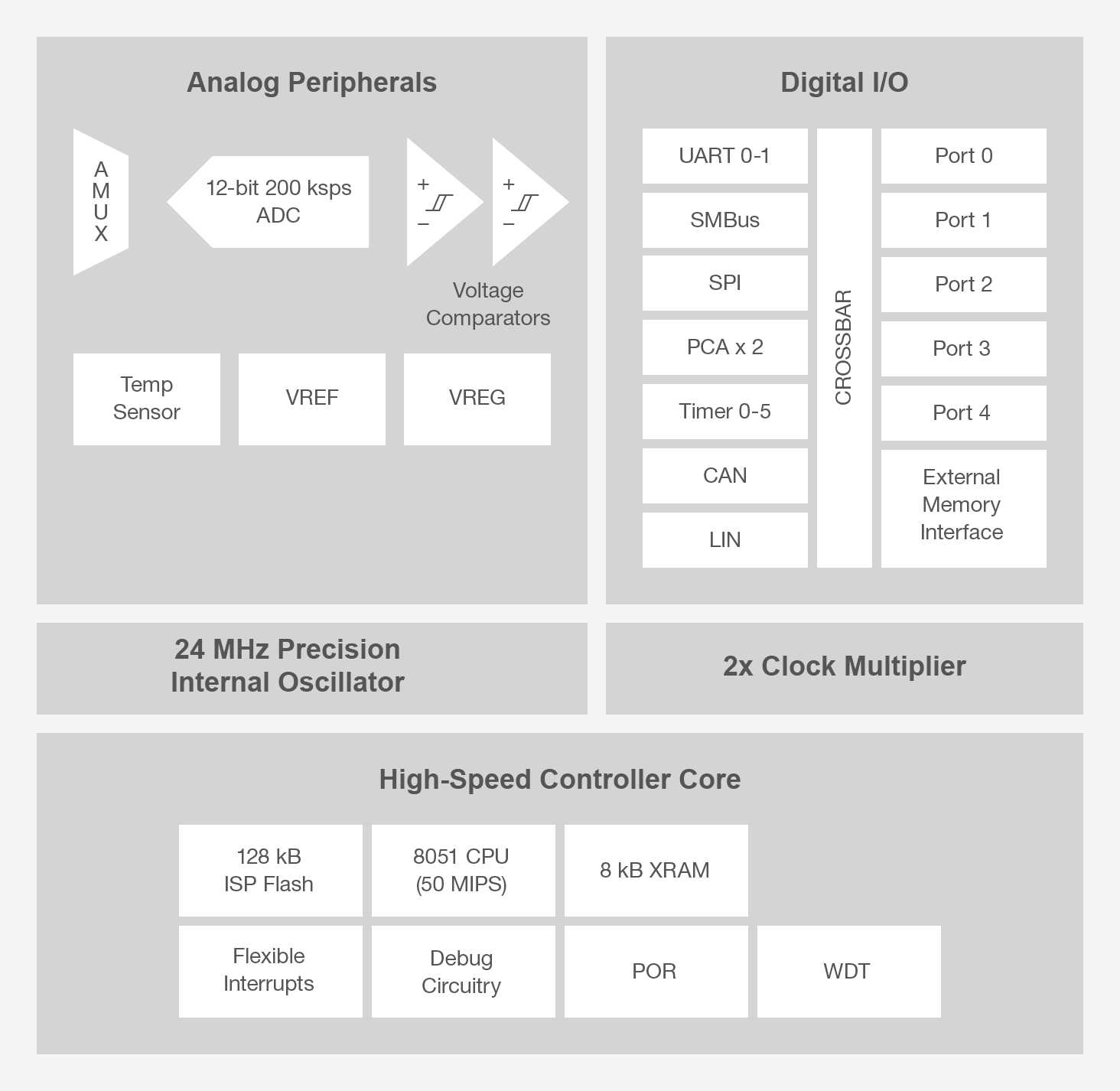

C8051F58x Common Specs

50 MIPS 8051 CPU
128 or 96 kB Flash memory
8 kB RAM
24 MHz on-board oscillator (±0.5%) with clock multiplier
12-bit, 200 ksps ADC, ±1LSB INL
Up to 32 analog inputs

Up to 40 digital I/O
CAN 2.0 B, LIN 2.0
2 x UART, SPI, I²C
PWM, Timers
1.8 to 5.25 V input supply
–40 to 125 ºC operating range

Two on-chip comparator and temperature sensor
Packages:
- 48-Pin QFP/QFN
- 40-Pin QFN
- 32-Pin QFP/QFN

Show More Show Less

Part Number

MCU Core

MHz

Flash (kB)

RAM (kB)

Dig I/O Pins

5 Volt Tolerant

ADC 1

USB

Temp Sensor

Timers (16-bit)

PCA Channels

ADC 2

DAC

Comparators

UART

SPI

I2C

HS I2C Slave

I2S

EMIF

CAN

LIN

AES

AEC-Q100

Vdd (min)

Vdd (max)

Package Type

Package Size (mm)

Internal Osc.

VREF

Debug Interface

Temperature (ºC)

C8051F580-AM

(EOL) Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN48

7x7

±0.5%

-40 125

C8051F580-AQ

(EOL) Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFP48

7x7

±0.5%

-40 125

C8051F580-IM

Buy Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN48

7x7

±0.5%

-40 125

C8051F580-IQ

Buy Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFP48

7x7

±0.5%

-40 125

C8051F581-AM

(EOL) Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN48

7x7

±0.5%

-40 125

C8051F581-AQ

(EOL) Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFP48

7x7

±0.5%

-40 125

C8051F581-IM

Buy Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN48

7x7

±0.5%

-40 125

C8051F581-IQ

Buy Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFP48

7x7

±0.5%

-40 125

C8051F582-AM

(EOL) Sample

8051

128

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFN32

5x5

±0.5%

-40 125

C8051F582-AQ

(EOL) Sample

8051

128

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFP32

7x7

±0.5%

-40 125

C8051F582-IM

Buy Sample

8051

128

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFN32

5x5

±0.5%

-40 125

C8051F582-IQ

Buy Sample

8051

128

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFP32

7x7

±0.5%

-40 125

C8051F583-AM

(EOL) Sample

8051

128

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFN32

5x5

±0.5%

-40 125

C8051F583-AQ

(EOL) Sample

8051

128

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFP32

7x7

±0.5%

-40 125

C8051F583-IM

Buy Sample

8051

128

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFN32

5x5

±0.5%

-40 125

C8051F583-IQ

Buy Sample

8051

128

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFP32

7x7

±0.5%

-40 125

C8051F584-AM

(EOL) Sample

8051

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN48

7x7

±0.5%

-40 125

C8051F584-AQ

(EOL) Sample

8051

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFP48

7x7

±0.5%

-40 125

C8051F584-IM

(EOL) Buy Sample

8051

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN48

7x7

±0.5%

-40 125

C8051F584-IQ

(EOL) Buy Sample

8051

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFP48

7x7

±0.5%

-40 125

C8051F585-AM

(EOL) Sample

8051

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN48

7x7

±0.5%

-40 125

C8051F585-AQ

(EOL) Sample

8051

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFP48

7x7

±0.5%

-40 125

C8051F585-IM

(EOL) Buy Sample

8051

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN48

7x7

±0.5%

-40 125

C8051F585-IQ

(EOL) Buy Sample

8051

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFP48

7x7

±0.5%

-40 125

C8051F586-AM

(EOL) Sample

8051

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFN32

5x5

±0.5%

-40 125

C8051F586-AQ

(EOL) Sample

8051

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFP32

7x7

±0.5%

-40 125

C8051F586-IM

(EOL) Buy

8051

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFN32

5x5

±0.5%

-40 125

C8051F586-IQ

(EOL) Buy Sample

8051

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFP32

7x7

±0.5%

-40 125

C8051F587-AM

Sample

8051

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFN32

5x5

±0.5%

-40 125

C8051F587-AQ

(EOL)

8051

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFP32

7x7

±0.5%

-40 125

C8051F587-IM

(EOL) Buy Sample

8051

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFN32

5x5

±0.5%

-40 125

C8051F587-IQ

(EOL) Buy Sample

8051

12-bit, 25-ch., 200 ksps

—

1.8

5.25

QFP32

7x7

±0.5%

-40 125

C8051F588-AM

(EOL) Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN40

6x6

±0.5%

-40 125

C8051F588-IM

(EOL) Buy

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN40

6x6

±0.5%

-40 125

C8051F589-AM

(EOL) Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN40

6x6

±0.5%

-40 125

C8051F589-IM

(EOL) Buy Sample

8051

128

12-bit, 32-ch., 200 ksps

—

1.8

5.25

QFN40

6x6

±0.5%

-40 125

Part Number	MCU Core	MHz	Flash (kB)	RAM (kB)	Dig I/O Pins	ADC 1	Timers (16-bit)	PCA Channels	ADC 2	DAC	Comparators	UART	SPI	I2C	EMIF	CAN	LIN	Vdd (min)	Vdd (max)	Package Type	Package Size (mm)	Internal Osc.	Debug Interface	Temperature (ºC)
C8051F580-AM (EOL) Sample	8051	50	128	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	1	1	1.8	5.25	QFN48	7x7	±0.5%	C2	-40 125
C8051F580-AQ (EOL) Sample	8051	50	128	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	1	1	1.8	5.25	QFP48	7x7	±0.5%	C2	-40 125
C8051F580-IM Buy Sample	8051	50	128	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	1	1	1.8	5.25	QFN48	7x7	±0.5%	C2	-40 125
C8051F580-IQ Buy Sample	8051	50	128	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	1	1	1.8	5.25	QFP48	7x7	±0.5%	C2	-40 125
C8051F581-AM (EOL) Sample	8051	50	128	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	0	0	1.8	5.25	QFN48	7x7	±0.5%	C2	-40 125
C8051F581-AQ (EOL) Sample	8051	50	128	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	0	0	1.8	5.25	QFP48	7x7	±0.5%	C2	-40 125
C8051F581-IM Buy Sample	8051	50	128	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	0	0	1.8	5.25	QFN48	7x7	±0.5%	C2	-40 125
C8051F581-IQ Buy Sample	8051	50	128	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	0	0	1.8	5.25	QFP48	7x7	±0.5%	C2	-40 125
C8051F582-AM (EOL) Sample	8051	50	128	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	1	1	1.8	5.25	QFN32	5x5	±0.5%	C2	-40 125
C8051F582-AQ (EOL) Sample	8051	50	128	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	1	1	1.8	5.25	QFP32	7x7	±0.5%	C2	-40 125
C8051F582-IM Buy Sample	8051	50	128	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	1	1	1.8	5.25	QFN32	5x5	±0.5%	C2	-40 125
C8051F582-IQ Buy Sample	8051	50	128	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	1	1	1.8	5.25	QFP32	7x7	±0.5%	C2	-40 125
C8051F583-AM (EOL) Sample	8051	50	128	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	0	0	1.8	5.25	QFN32	5x5	±0.5%	C2	-40 125
C8051F583-AQ (EOL) Sample	8051	50	128	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	0	0	1.8	5.25	QFP32	7x7	±0.5%	C2	-40 125
C8051F583-IM Buy Sample	8051	50	128	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	0	0	1.8	5.25	QFN32	5x5	±0.5%	C2	-40 125
C8051F583-IQ Buy Sample	8051	50	128	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	0	0	1.8	5.25	QFP32	7x7	±0.5%	C2	-40 125
C8051F584-AM (EOL) Sample	8051	50	96	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	1	1	1.8	5.25	QFN48	7x7	±0.5%	C2	-40 125
C8051F584-AQ (EOL) Sample	8051	50	96	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	1	1	1.8	5.25	QFP48	7x7	±0.5%	C2	-40 125
C8051F584-IM (EOL) Buy Sample	8051	50	96	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	1	1	1.8	5.25	QFN48	7x7	±0.5%	C2	-40 125
C8051F584-IQ (EOL) Buy Sample	8051	50	96	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	1	1	1.8	5.25	QFP48	7x7	±0.5%	C2	-40 125
C8051F585-AM (EOL) Sample	8051	50	96	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	0	0	1.8	5.25	QFN48	7x7	±0.5%	C2	-40 125
C8051F585-AQ (EOL) Sample	8051	50	96	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	0	0	1.8	5.25	QFP48	7x7	±0.5%	C2	-40 125
C8051F585-IM (EOL) Buy Sample	8051	50	96	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	0	0	1.8	5.25	QFN48	7x7	±0.5%	C2	-40 125
C8051F585-IQ (EOL) Buy Sample	8051	50	96	8	40	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	0	0	1.8	5.25	QFP48	7x7	±0.5%	C2	-40 125
C8051F586-AM (EOL) Sample	8051	50	96	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	1	1	1.8	5.25	QFN32	5x5	±0.5%	C2	-40 125
C8051F586-AQ (EOL) Sample	8051	50	96	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	1	1	1.8	5.25	QFP32	7x7	±0.5%	C2	-40 125
C8051F586-IM (EOL) Buy	8051	50	96	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	1	1	1.8	5.25	QFN32	5x5	±0.5%	C2	-40 125
C8051F586-IQ (EOL) Buy Sample	8051	50	96	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	1	1	1.8	5.25	QFP32	7x7	±0.5%	C2	-40 125
C8051F587-AM Sample	8051	50	96	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	0	0	1.8	5.25	QFN32	5x5	±0.5%	C2	-40 125
C8051F587-AQ (EOL)	8051	50	96	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	0	0	1.8	5.25	QFP32	7x7	±0.5%	C2	-40 125
C8051F587-IM (EOL) Buy Sample	8051	50	96	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	0	0	1.8	5.25	QFN32	5x5	±0.5%	C2	-40 125
C8051F587-IQ (EOL) Buy Sample	8051	50	96	8	25	12-bit, 25-ch., 200 ksps	6	12	—	—	3	2	1	1	0	0	0	1.8	5.25	QFP32	7x7	±0.5%	C2	-40 125
C8051F588-AM (EOL) Sample	8051	50	128	8	33	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	1	1	1.8	5.25	QFN40	6x6	±0.5%	C2	-40 125
C8051F588-IM (EOL) Buy	8051	50	128	8	33	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	1	1	1.8	5.25	QFN40	6x6	±0.5%	C2	-40 125
C8051F589-AM (EOL) Sample	8051	50	128	8	33	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	0	0	1.8	5.25	QFN40	6x6	±0.5%	C2	-40 125
C8051F589-IM (EOL) Buy Sample	8051	50	128	8	33	12-bit, 32-ch., 200 ksps	6	12	—	—	3	2	1	1	1	0	0	1.8	5.25	QFN40	6x6	±0.5%	C2	-40 125
