Si-EB8045C

MSRP $55.00

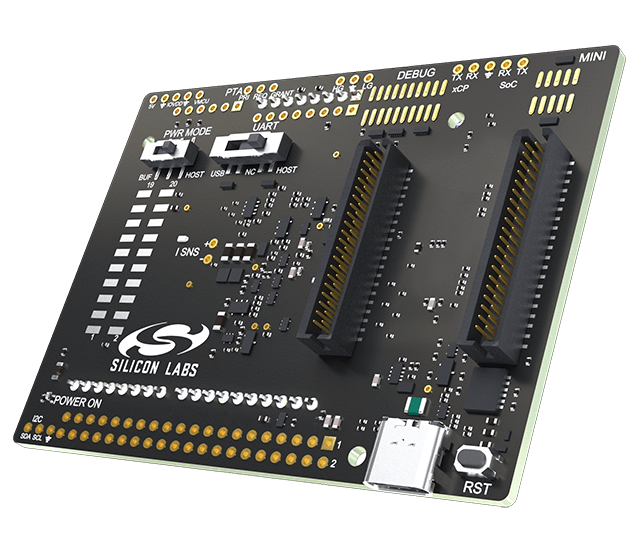

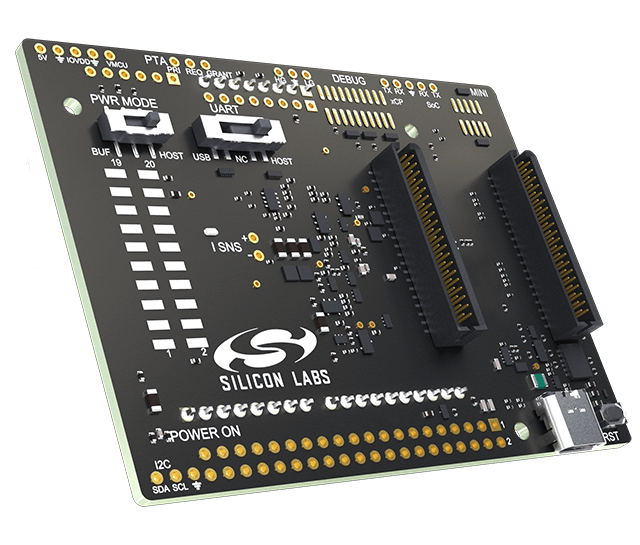

Shield Adapter Board for Co-Processor Expansion Kit

The Shield Adapter Board for Co-Processor Radio Boards is an excellent way to explore and evaluate SiWx917 Radio Boards in Network Co-Processor mode with an external STM32 Nucleo-64 host through the Shield interface. This Adapter Board features a built-in SPI data interface (SDIO via optional header row), UART, I2C, Low-Power Signals, and Power. The SPI connects to an Arduino Uno compatible development platform. Refer to UG569 Adapter Board for Co-Processor Radio Boards User’s Guide for more details. An external host MCU is not included.

Read More Read Less

MSRP $55.00



Kit Contents

  • 1 x BRD8045C Shield Adapter Board for SiWx917 Co-Processors

Kit Features

  • Supports connection of an SiWx917 Co-Processor Radio Board to an external host through the Shield (Arduino Uno) interface

Step 1:

Refer to the Radio Boards listed under the Compatible Boards tab for Getting Started guidance.

Simplicity Studio

Development Platform

Get up and running quickly with precompiled demos, application notes and examples. Use advanced tools including energy profiling and network analysis to optimize your MCU and wireless systems.

Explore Studio
Status
Radio Boards Select Columns
Select Columns
Radio Boards Included Device Flash RAM Output Power (dBm) BLE Bluetooth 5 Bluetooth Mesh Zigbee Thread Proprietary Sub-GHz Proprietary 2.4 GHz
SiWx917-RB4346A
Buy
Included Device: SIWN917M100LGT
SIWN917M100LGT
4096 672
    Sort A -> Z
    Sort Z -> A
    Filter by values...
    Select All . Clear

      Third Party Boards

      Boards
      		 Description
      STM32 Nucleo Host Boards The highly affordable STM32 Nucleo Host Boards allow anyone to try out new ideas and to create prototypes quickly with any STM32 MCU.
