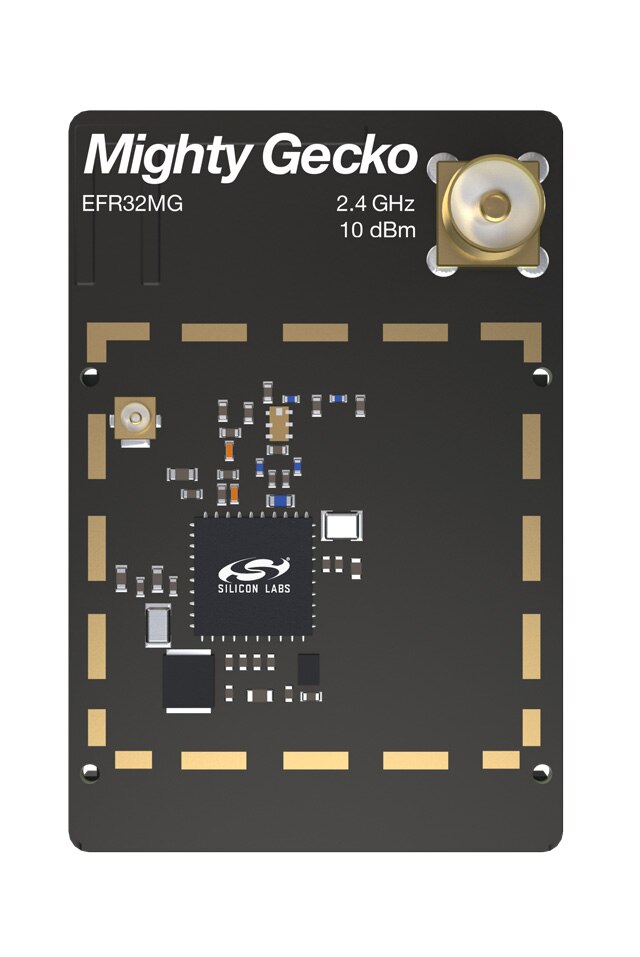

Device/Module image

EFR32MG12P132F1024GM48

Zigbee and Thread EFR32MG12 SoCs (Series 1)

The EFR32MG12P132F1024GM48 includes a 40 MHz ARM Cortex-M4 microcontroller with 1024 Flash, 128 RAM and a rich peripheral set in a QFN48 package. With 10 dBm maximum output power and receive sensitivity of -102.7 (250 kbps O-QPSK DSSS), the device provides an excellent link budget for greater range and reliable RF communications. Built with low-power Gecko technology, which includes innovative low energy techniques, fast wake-up times and energy saving modes the EFR32MG12P132F1024GM48 reduces overall power consumption and maximizes battery life. The EFR32MG12P132F1024GM48 includes wireless networking stacks for Zigbee,  Thread, and Bluetooth low energy. The device also includes support for proprietary wireless protocol development.

EFR32MG12P132F1024GM48
Loading..

Find Similar Models

I2S

Output Power Max (dBm)

Total Link Budget (dB)

Key Specs

4 I2S / 10 Output Power Max (dBm) / 112.7 Total Link Budget (dB)
MCU Core
ARM Cortex-M4
Core Frequency (MHz)
40
Flash (kB)
1024
RAM (kB)
128
Receive Sensitivity
-102.7 (250 kbps O-QPSK DSSS)
Max Output Power
10
GPIO
31
Temperature (Min)
-40
Temperature (Max)
85
Package Type
QFN48
Zigbee Capable
Yes
Thread Capable
Yes
Bluetooth Low Energy Capable
Yes
2.4 GHz Capable
Yes
Sub-GHz Capable
No
MCU Core
ARM Cortex-M4
Core Frequency (MHz)
40
Flash (kB)
1024
RAM (kB)
128
Receive Sensitivity
-102.7 (250 kbps O-QPSK DSSS)
Max Output Power
10
GPIO
31
Temperature (Min)
-40
Temperature (Max)
85
Package Type
QFN48
Zigbee Capable
Yes
Thread Capable
Yes
Bluetooth Low Energy Capable
Yes
2.4 GHz Capable
Yes
Sub-GHz Capable
No
EFR32xG12 Block Diagram
